Diode Dynamics

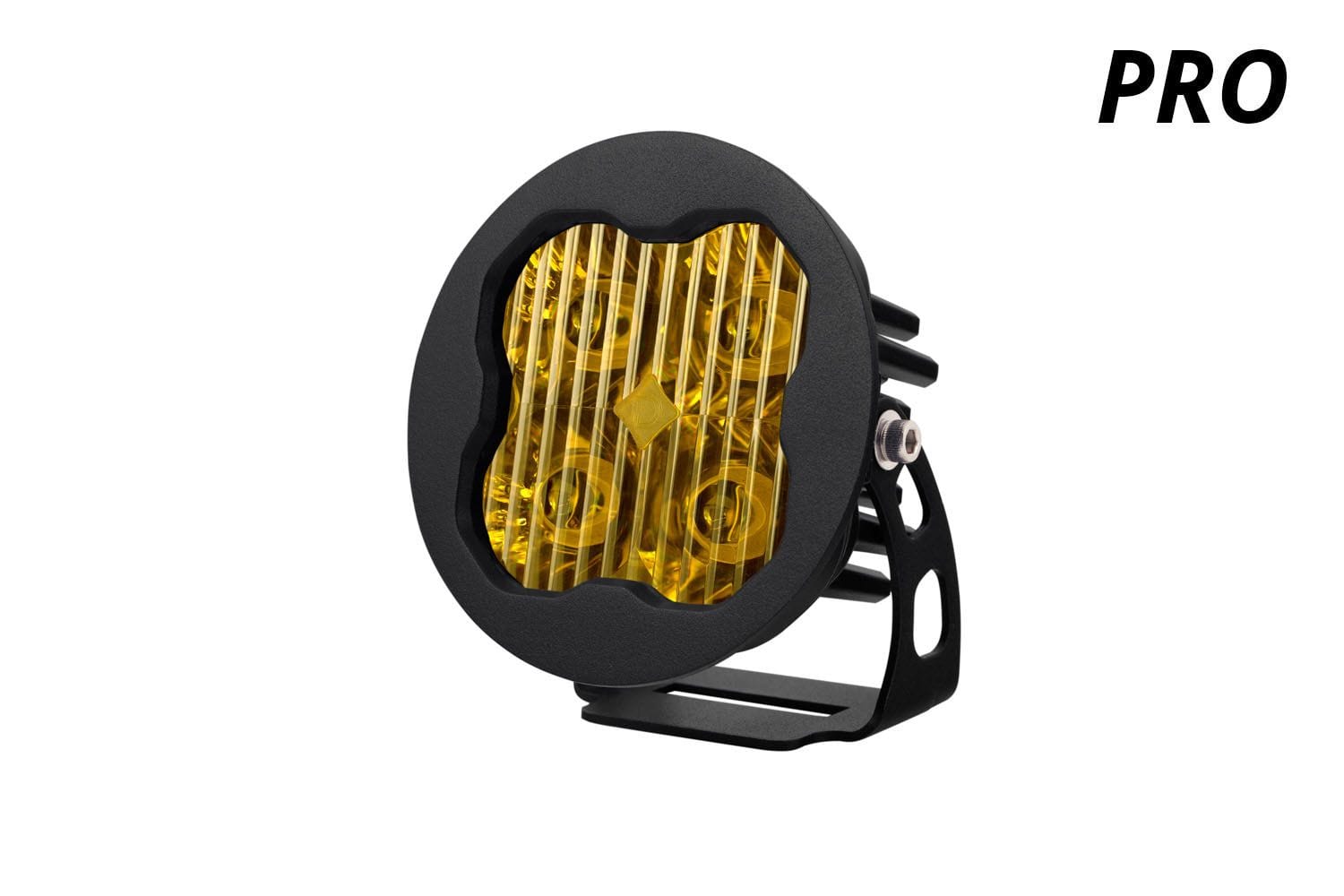

Stage Series 3" SAE Yellow Pro Round LED Pod (One)
Stage Series 3" SAE Yellow Pro Round LED Pod (One)
Couldn't load pickup availability
Secured and Trusted Checkout With:
Collapsible content
Description
Features
- Advanced TIR optics provide high efficiency and focus
- Available in SAE Fog beam pattern
- High-intensity automotive-type LEDs
- Pin-fin heatsink design, for superior thermal dissipation
- Integrated Deutsch-style connector
- Durable powdercoated aluminum construction
- Engineered and Assembled in USA
Overview

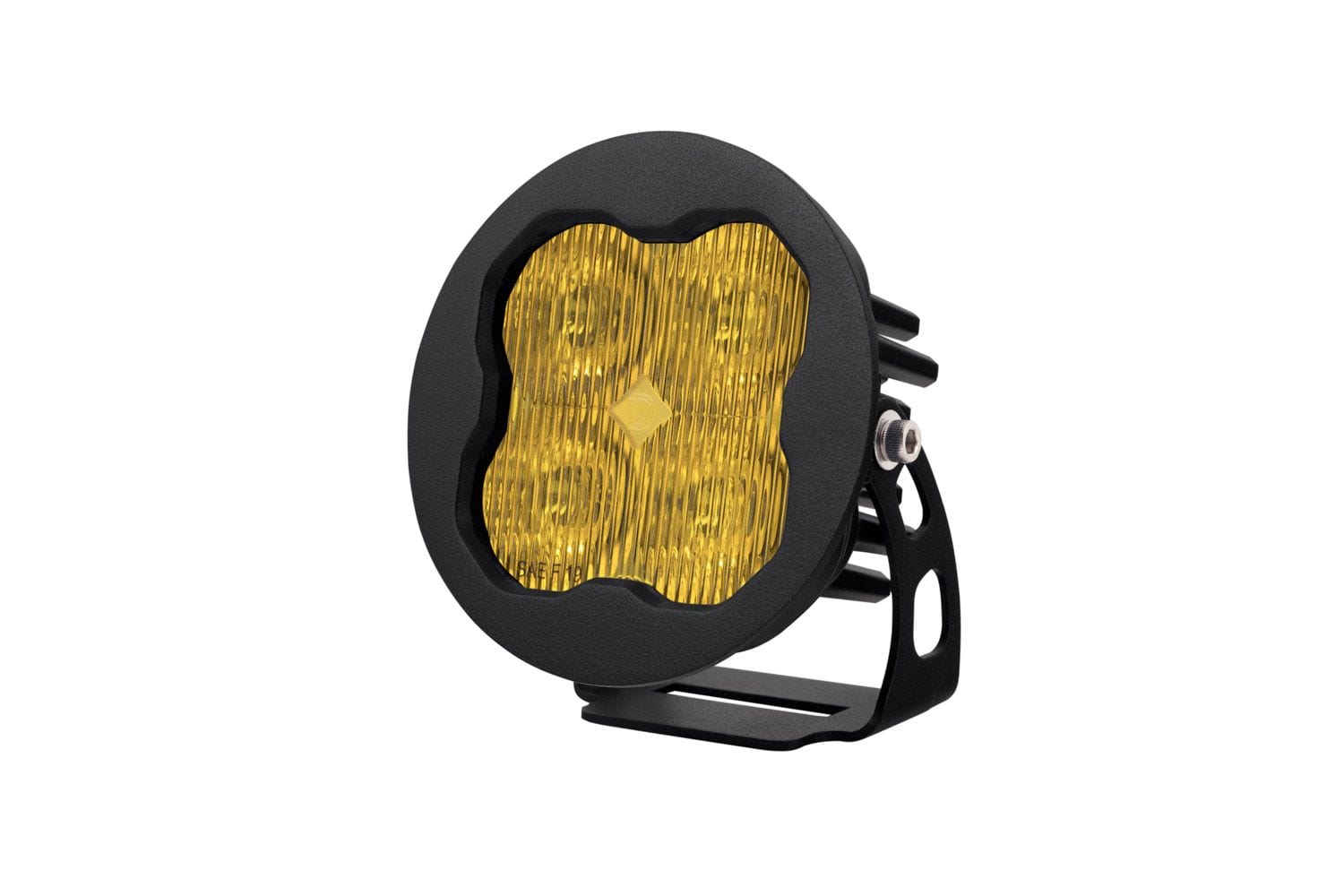

Introducing the SS3 3” LED Pod! Featuring higher output intensity than any other 3” light on the market, these LED pods have been designed for maximum functionality, with custom-engineered TIR optics shining in highly useful beam patterns, all in a durable package.
Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency.
From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.
Functional Pattern. All Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern. No matter what your auxiliary lighting needs are, there is a Stage Series optic for you!
SAE Fog uses our distinctive FineLine optic design, and provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It serves as a great upgrade for any factory foglamp, and will fully illuminate the area in front of your vehicle. Choose your output color of cool white or yellow, which is often said to help cut through inclement weather.
Not just off road. When installed as a pair and aimed in accordance with your state's regulations, the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. For states that require them, we also offer snap-on covers for your SS3 Pod. These covers are available in a variety of colors and keep your SS3 Pod clean and protected from dirt, dust, or whatever else the road throws your way! Please check your local laws and regulations for aiming, installation, and applicability.
White or Yellow. All Stage Series LED pods are available in a cool white or selective yellow color. The white is a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. The selective yellow is a 3000K color temperature, great for high contrast in poor weather or a distinctive look on the road. We also offer replacement lenses that allow you to change the color or optic of your SS3 Pods.
Sport, Pro, or Max. Stage Series LED pods are available at three different power levels. All options use high-intensity LED emitters, and TIR optics for unmatched focus and overall output. The Sport model uses high-intensity LEDs and is the best bang for the buck you’ll find. The Pro model steps things up in a big way, with double the total power. Finally, the Max model is designed with cutting-edge automotive emitters, for both high power and extreme intensity. This brand new technology comes at a cost, but if you’re looking for the absolute best in lighting performance, the SS3 Max is the answer.
Simple connections. All SS3 LED pods feature a custom-molded DT type Deutsch-style connector on the back, and come with a 6-inch pigtail with bare leads. For installation, you can wire yourself, use an off-the-shelf Deutsch DT-sized wire harness, or select an optional Diode Dynamics wire harness. If you are looking to power one or two pods, you can use our Light Duty Dual Output 2-Pin Harness for non-backlit SS3 pods. If you are looking to power more than two pods, we recommend using our Heavy Duty Dual Output 2-Pin Harness for non-backlit SS3 pods.
Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.
Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

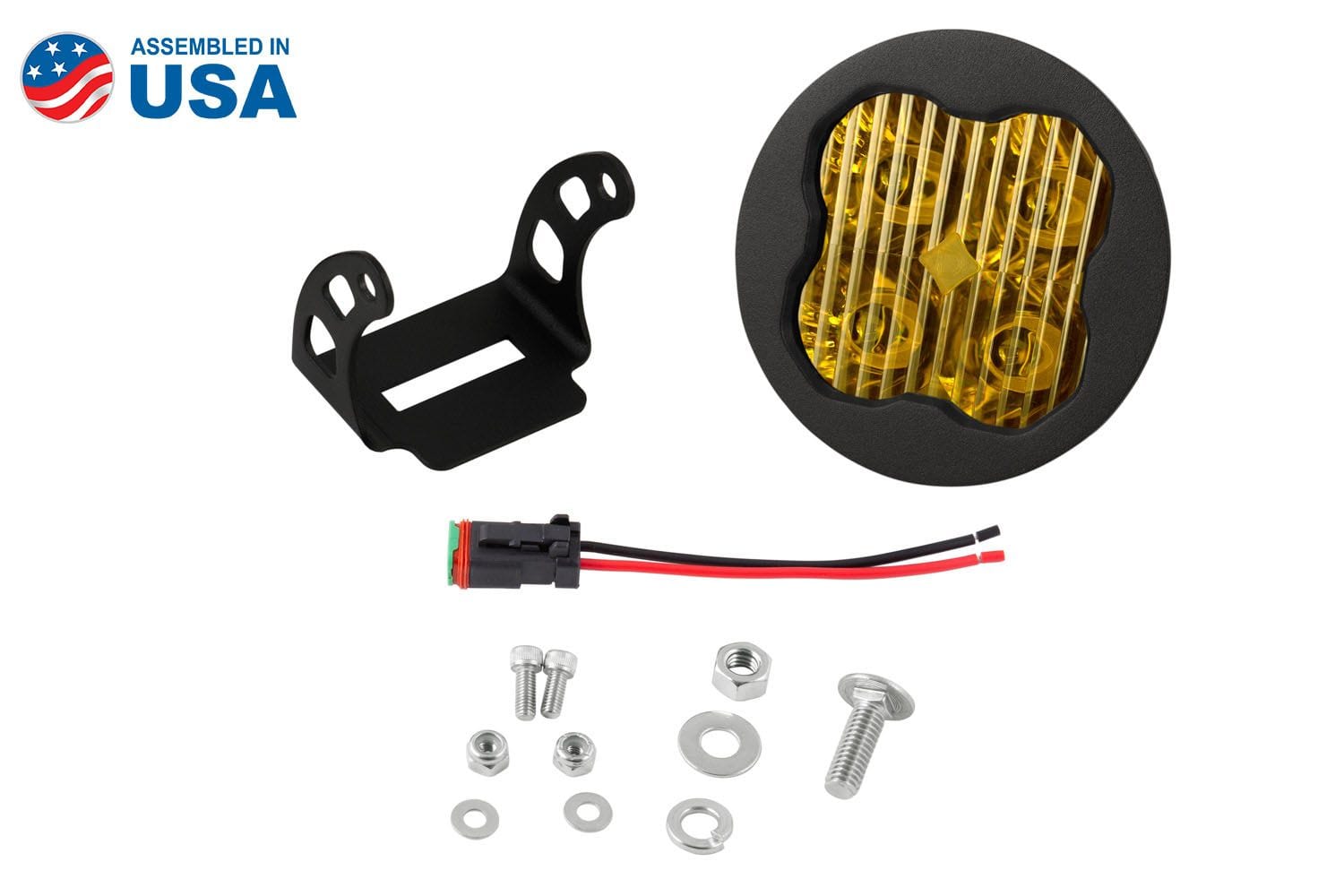

- One (1) SS3 3” LED Pod
- One (1) Deutsch-style wire pigtail
- One (1) Mounting bracket and hardware
| Lens Color/Optics |
Peak Beam Intensity |
Illuminance (lux @ 10m) |
Measured Output (lumens) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|---|

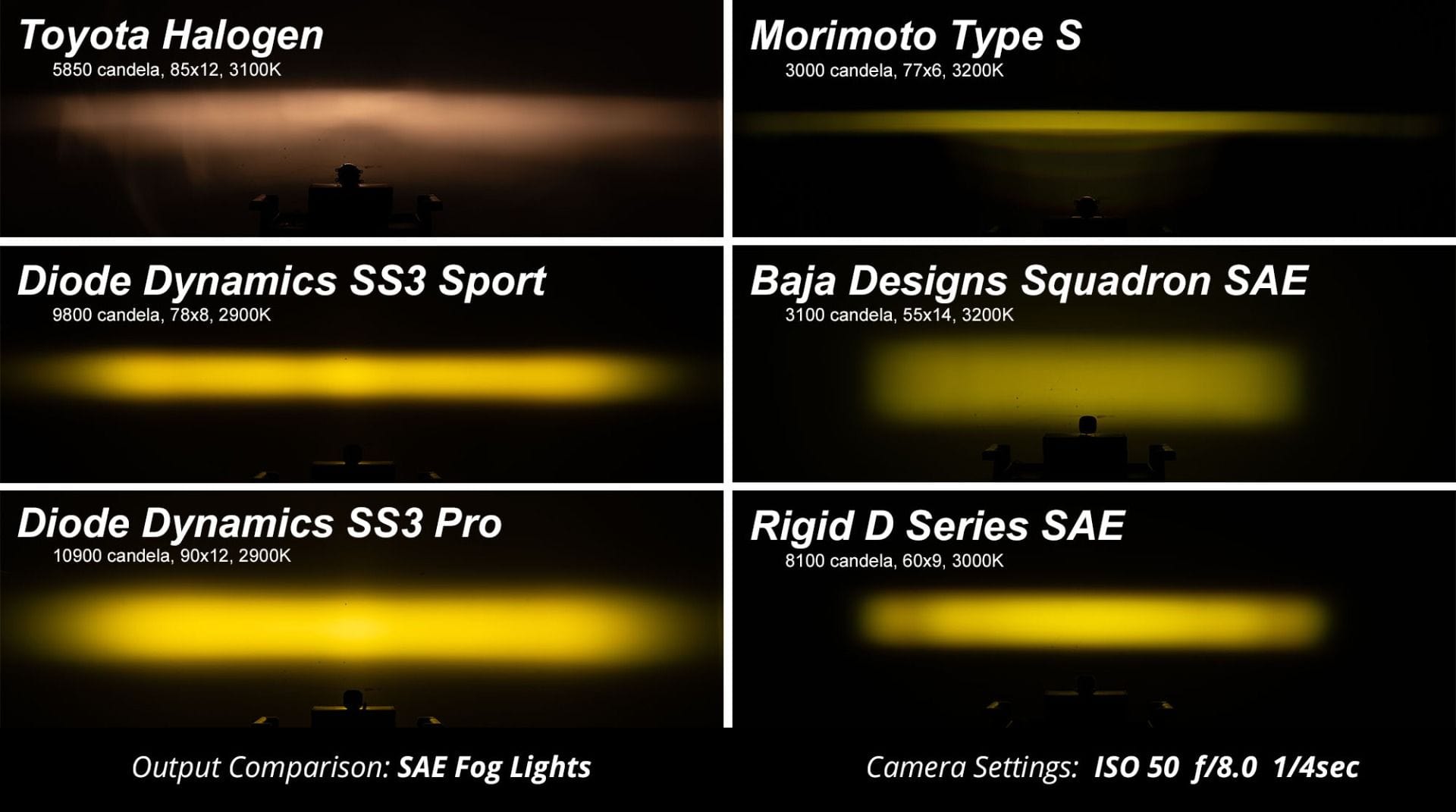

| Fog Sport | 9,050 cd | 91 lux | 1,300 lm | 1,930 lm | 3000K Yellow |
| Fog Pro | 10,900 cd | 109 lux | 2,700 lm | 5,220 lm | 3000K Yellow |
| Fog Max | 12,500 cd | 125 lux | 3,500 lm | 7,920 lm | 3000K Yellow |
Installation Time: 30-60 minutes
Tools Needed: Basic Toolset
Installation Guide: Click to download
Wiring Instructions: Click here
